| Data Group | Parameter | Value |
|---|---|---|

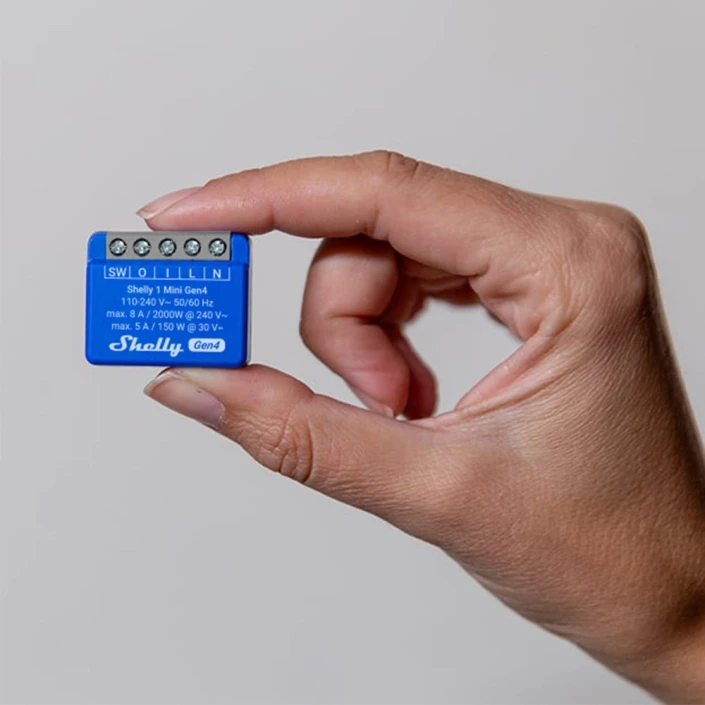

| Physical | Size (HxWxD): | 29x34x16 ±0.5 mm / 1.34x1.11x0.63 ±0.02 inch |
| Weight: | 19 ±1 g / 0.65 ±0.04 oz | |
| Screw terminals max torque: | 0.4 Nm / 3.5 lbin | |
| Conductor cross section: | 0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules) | |
| Conductor stripped length: | 6 to 7 mm / 0.24 to 0.28 in | |

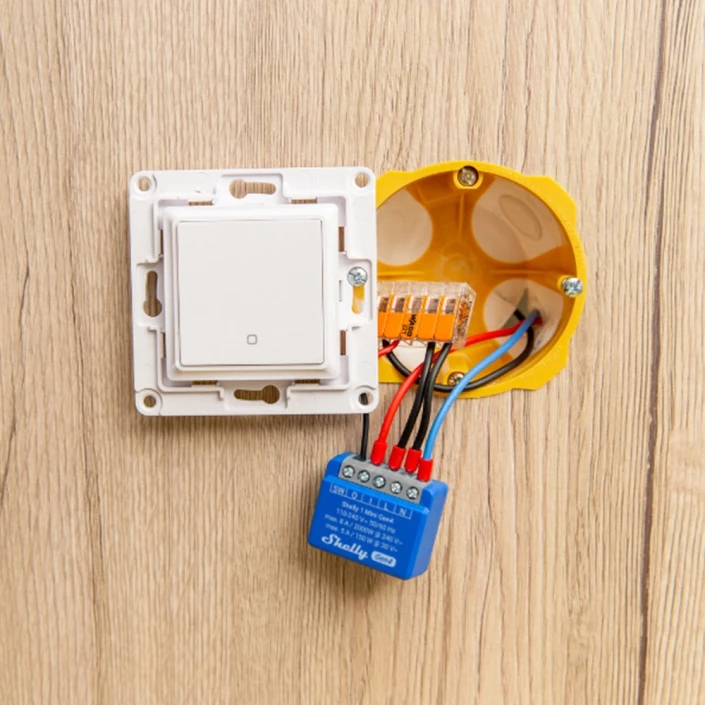

| Mounting: | Wall box | |
| Shell material: | Plastic | |
| Shell color: | Blue, C-95%; M-53%; Y-0%; K-0% | |
| Connectors color: | Grey (Mouse Grey) | |
| Environmental | Ambient working temperature: | -20 °C to 40 °C / -5 °F to 105 °F |
| Humidity: | 30 % to 70 % RH | |
| Max. altitude: | 2000 m / 6562 ft | |
| Electrical | Power supply: | 110 - 240 V~ |
| Relay: | Dry, NO contact, 1-pole, µ contact | |
| Power consumption: | < 1.2 W | |
| External protection: | Tripping characteristic B or C, max. 10A max. rated current, min. 6 kA interrupting rating, energy limiting class 3 |
|
| Output circuits ratings | Max. switching voltage: |
|
| Max. switching current: |
|
|
| Max. output power: |
|
|
| Voltage protection / Cutoff: | No | |
| Current protection / Cutoff: | No | |
| Max power protection / Cutoff: | No | |
| Sensors, meters | Internal-temperature sensor: | Yes |
| Wi-Fi | Protocol: | 802.11 b/g/n/ax |
| RF band: | 2412 - 2472 МHz | |
| Max. RF power: | < 20 dBm | |
| Range: | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions) | |
| Bluetooth | Protocol: | 5.0 |
| RF band: | 2402 - 2480 MHz | |
| Max. RF power: | < 4 dBm | |
| Range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions) | |
| Zigbee | Protocol: | 802.15.4 |
| RF bands: | 2400 to 2483.5 MHz | |
| Max. RF power: | < 20 dBm | |
| Range: | Up to 100 m / 328 ft indoors and 300 meters / 984 ft outdoors (Depends on local conditions) | |
| Microcontroller unit | CPU: | ESP-Shelly-C68F |
| Flash: | 8 MB | |
| Firmware capabilities | Schedules: | 20 |
| Webhooks (URL actions): | 20 with 5 URLs per hook | |
| Scripting: | Yes | |
| MQTT: | Yes | |
