| Physical |
Size (HxWxD): |

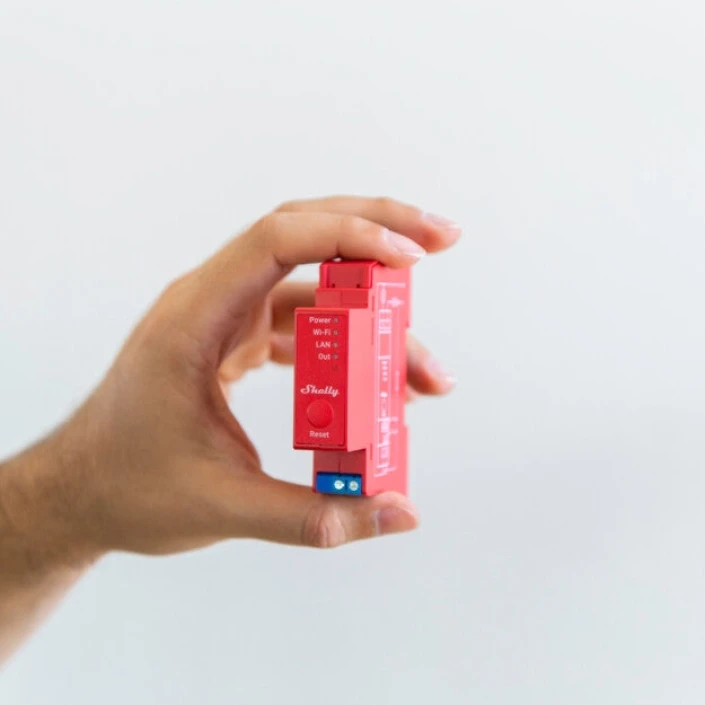

94x19x69 mm ±0.5 mm / 3.70x0.75x2.71 ±0.02 in |
| Weight: |
|
| Mounting: |

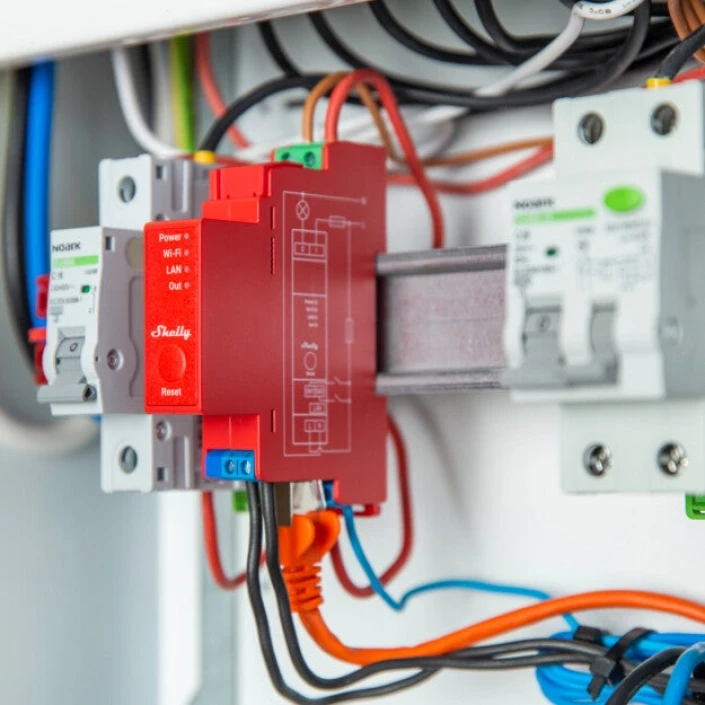

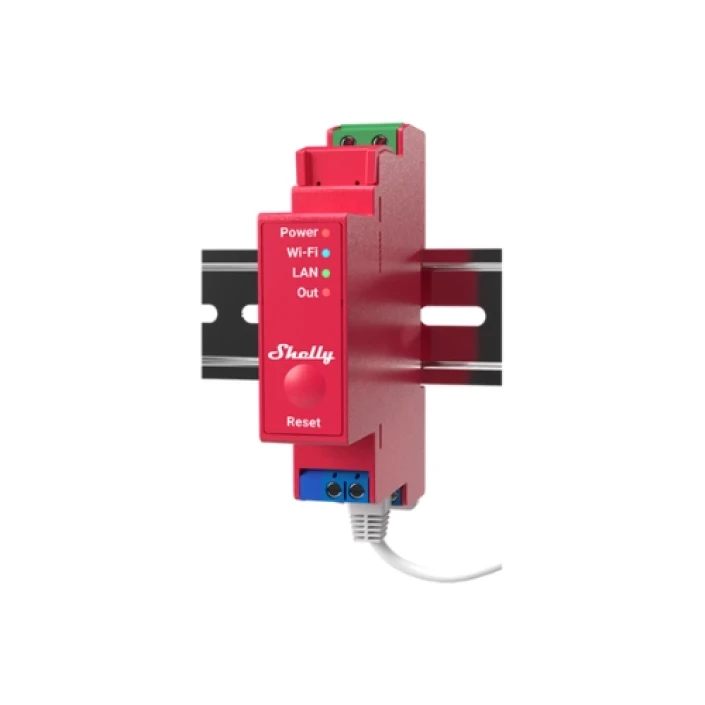

DIN rail |
| Screw terminals max torque: |
0.4 Nm / 3.54 lbin |
| Conductor cross section: |
0.5 to 2.5 mm² / 20 to 14 AWG (green connector)
0.5 to 1.5 mm² / 20 to 16 AWG (blue connectors) |
| Conductor stripped length: |
6 to 7 mm / 0.24 to 0.28 in (green connector)
5 to 6 mm / 0.20 to 0.24 in (blue connectors) |
| Shell material: |
Plastic |
| Color: |
Red |
| |
| Environmental |
Ambient temperature: |
-20 °C to 50 °C / -5 °F to 122 °F |
| Humidity |
10 % to 90 % RH |
| Max. altitude |
2000 m / 6562 ft |
| |
| Electrical |
Power supply voltage AC: |
110 - 240 V |
| Power supply voltage DC: |
N/A |
| Min. operating voltage AC: |
90 V |
| Max. operating voltage: AC |
264 V |
| Power consumption: |
< 3 W |
| Neutral not needed: |
No |
| |
| Output circuits ratings |
Max switching voltage AC: |
240 V |
| Max switching voltage DC: |
N/A |
| Max switching current AC: |

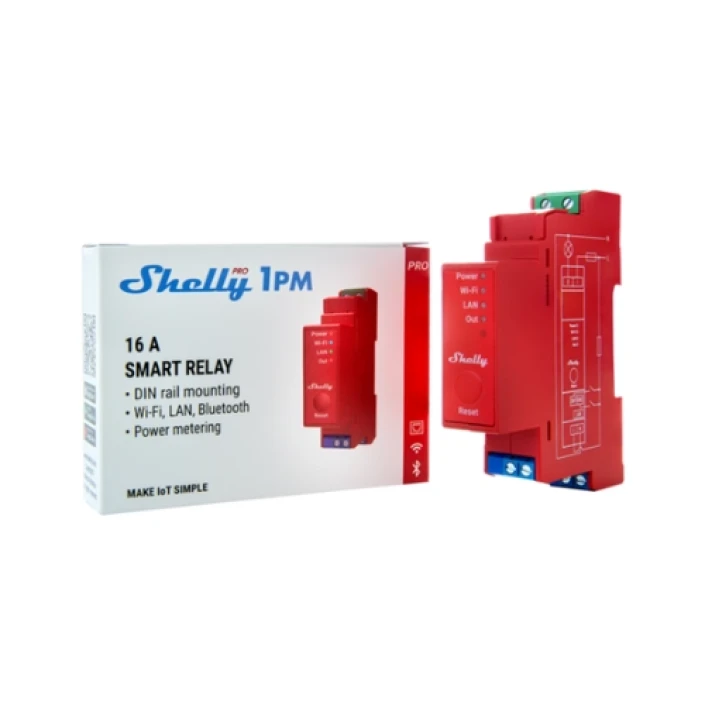

16 A |
| Max switching current DC: |
N/A |
| |
| Sensors, meters |
Voltmeter (AC) |
Yes |
| Ammeter (AC) |
Yes |
| Internal-temperature sensor: |
Yes |
| |
| Radio |
RF band: |
2400 - 2495 MHz |
| Max. RF power: |
<20 dBm |
| Wi-Fi protocol: |
802.11 b/g/n |
| Wi-Fi Range: |
Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors
(Depends on local conditions) |
| Bluetooth Protocol: |
4.2 |
| Bluetooth Range: |
Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors
(Depends on local conditions) |
| |
| MCU |
CPU: |
ESP32-D0WDQ6 |
| Flash: |
8 MB |
| |
| Firmware capabilities |
Schedules: |
20 |
| Webhooks (URL actions): |
20 with 5 URLs per hook |
| Scripting: |
Yes |
| MQTT: |
Yes |
| CoAP: |
No |
| |
