| Physical |
Size (HxWxD): |
- 21x54x42 mm / 0.83x2.13x1.65 in (Shelly 3EM-63W Gen3, without the wires)
- 31x54x42 mm / 1.22x2.13x1.65 in (Shelly 3EM-63T Gen3, without the wire)
|
| Wires length: |
260 mm (including the flat terminal) |
| Weight: |
- 58 g / 2.05 oz (Shelly 3EM-63W Gen3, including the wires)
- 52 g / 1.83 oz (Shelly 3EM-63T Gen3, including the wire)
|
| Conductor aperture: |
Ø8 mm / Ø0.3 in |
| Mounting: |

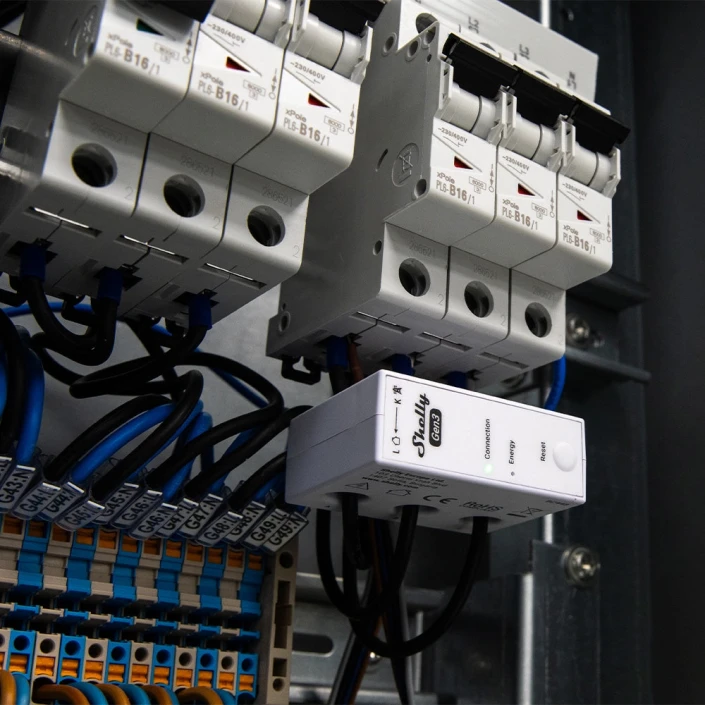

Above or under DIN-rail mounted circuit breakers |
| Shell material: |
Plastic |
| Shell color: |
White |
| |
| Environmental |
Ambient working temperature: |
-20 °C to 40 °C / -5 °F to 105 °F |
| Humidity: |
30 % to 70 % RH |
| Max. altitude: |
2000 m / 6562 ft |
| |
| Electrical |
Power supply: |
220-240 V~ 50/60 Hz (between LA and N) |
| Power consumption: |
< 2 W |
| External protection: |
63 A, tripping characteristic B or C,
6 kA interrupting rating,
Energy limiting class 3 |
| |
| Sensors, meters |
Internal-temperature sensor: |
Yes |
| Voltmeters (RMS for each phase): |
220-240 V~ 50/60 Hz |
| Voltmeters accuracy: |
better than ±1% |
| Ammeters (RMS via integrated CT for each phase): |
0 - 63 A (130 A saturation) |
| Ammeters accuracy: |
±1 % (2 - 63 A), ±2 % (1 - 2 A), ±5 % (0 - 1 A) |
| Power and energy meters: |
- Active and apparent power
- Active and apparent energy
- Power factor
- Fundamental active and fundamental reactive energy
|
| No load threshold: |
30 VA |
| Measurement data storage: |
At least 7 days of 1 min data resolution |
| Data export: |
- CSV for PQ recorded values
- JSON format export through RPC
|
| |
| Wi-Fi |
Protocol: |
802.11 b/g/n |
| RF band: |
2401 - 2483 МHz |
| Max. RF power: |
< 20 dBm |
| Range: |
Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions) |
| |
| Bluetooth |
Protocol: |
4.2 |
| RF band: |
2400 - 2483.5 MHz |
| Max. RF power: |
< 4 dBm |
| Range: |
Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions) |
| |
| Microcontroller unit |
CPU: |
ESP-Shelly-C38F |
| Flash: |
8 MB |
| |
| Firmware capabilities |
Schedules: |
20 |
| Webhooks (URL actions): |
20 with 5 URLs per hook |
| Scripting: |
Yes |
| MQTT: |
Yes |
| |
